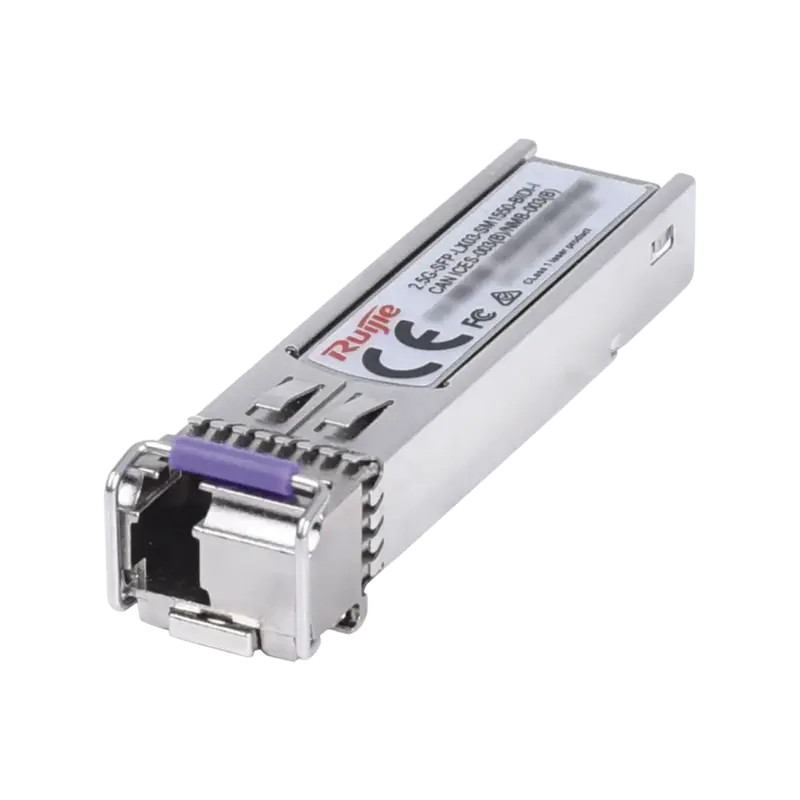

Transceptor Lado B un Hilo BiDi SFP 25Gb LC

Data rate

3.125 Gbps

Form factor

SFP

Connector type

BIDI LC

Cable type

SMF

Fiber end face finish type

Ultra Physical Contact (UPC)

Transmitter type

FB

DFB

Receiver type

PIN

Reach

3 km (9,842.52 ft.)

Bit error ratio (BER)

1.00E-12

Data diagnosis-capable (DDM/DOM)

Yes

Power consumption

≤ 1 W

Transmitter Optical Parameters

Wavelength

1310 nm TX

1550 nm RX

1550 nm TX

1310 nm RX

Max. transmit power (AVG)

–3 dBm

Min. transmit power (AVG)

–9 dBm

Min. extinction ratio

≥ 6.5 dB

Receiver Optical Parameters

Receive sensitivity (OMA)

< –16 dBm

Overload optical power (AVG)

–3 dBm

Environment and Reliability

Operating temperature

–40GrC to +85GrC (–40GrF to +185GrF)

Operating humidity

10% RH to 90% RH

Storage temperature

–40GrC to +85GrC (–40GrF to +185GrF)

Storage humidity

10% RH to 90% RH

Dimensions and Weight

Dimensions

(W x D x H)

56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.51 in. x 0.33 in.)

Weight

35 g (0.08 lbs.)
